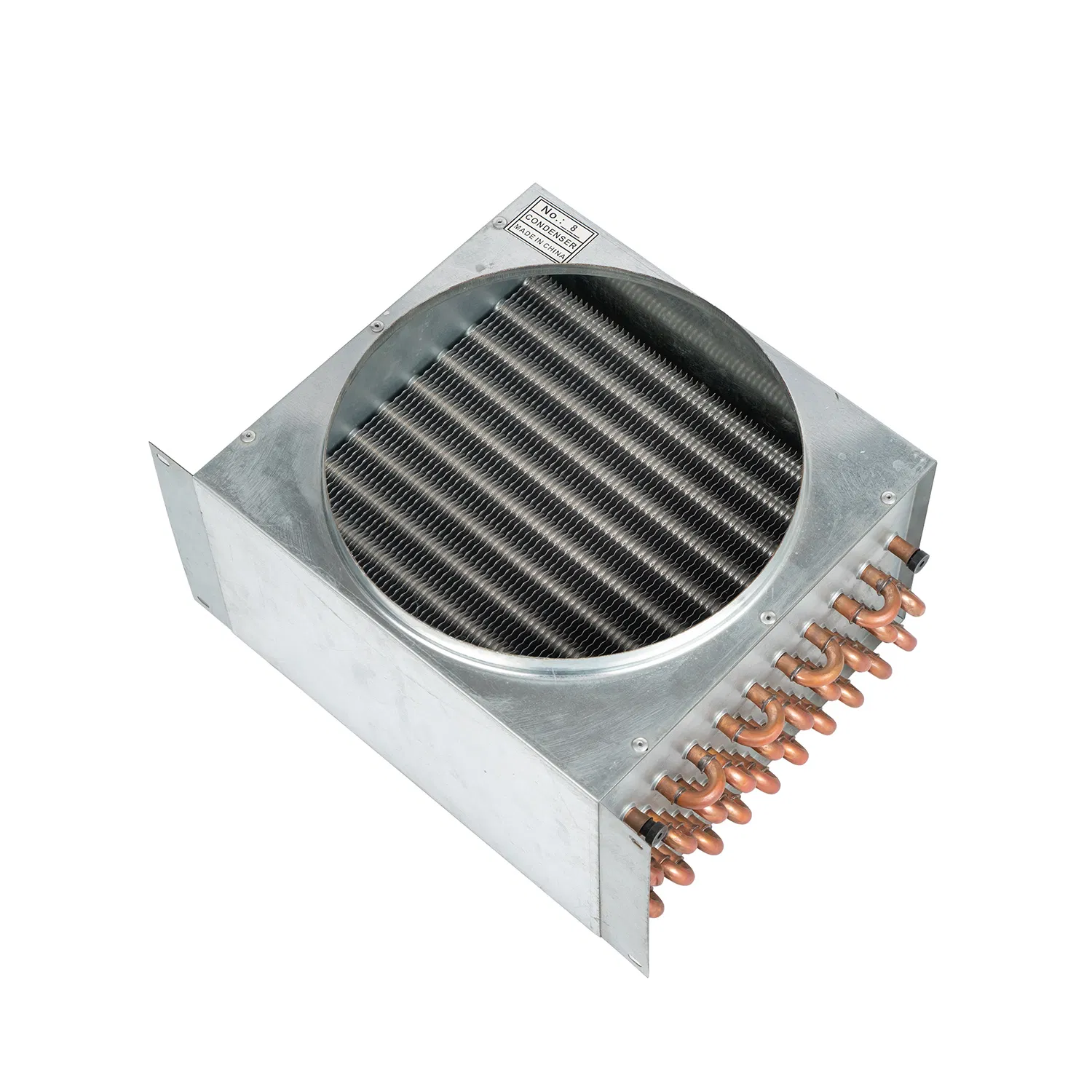

Copper Evaporator for Low Temperature Blast Freezer and Quick Freezing Tunnel

1 / 5

Copper Evaporator for Low Temperature Blast Freezer and Quick Freezing Tunnel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EVAPORATOR

Parts

Evaporator

Certification

Type

Evaporator

Item

R134A Evaporator Heat Exchanger 5g Base Station

Function

Evaporator

Transport Package

Seaworthy Export Cartons or Wooden Cases, Pallet

Origin

China

Production Capacity

1,000,000,000 PCS/Year

HS Code

8418999990

Product Description

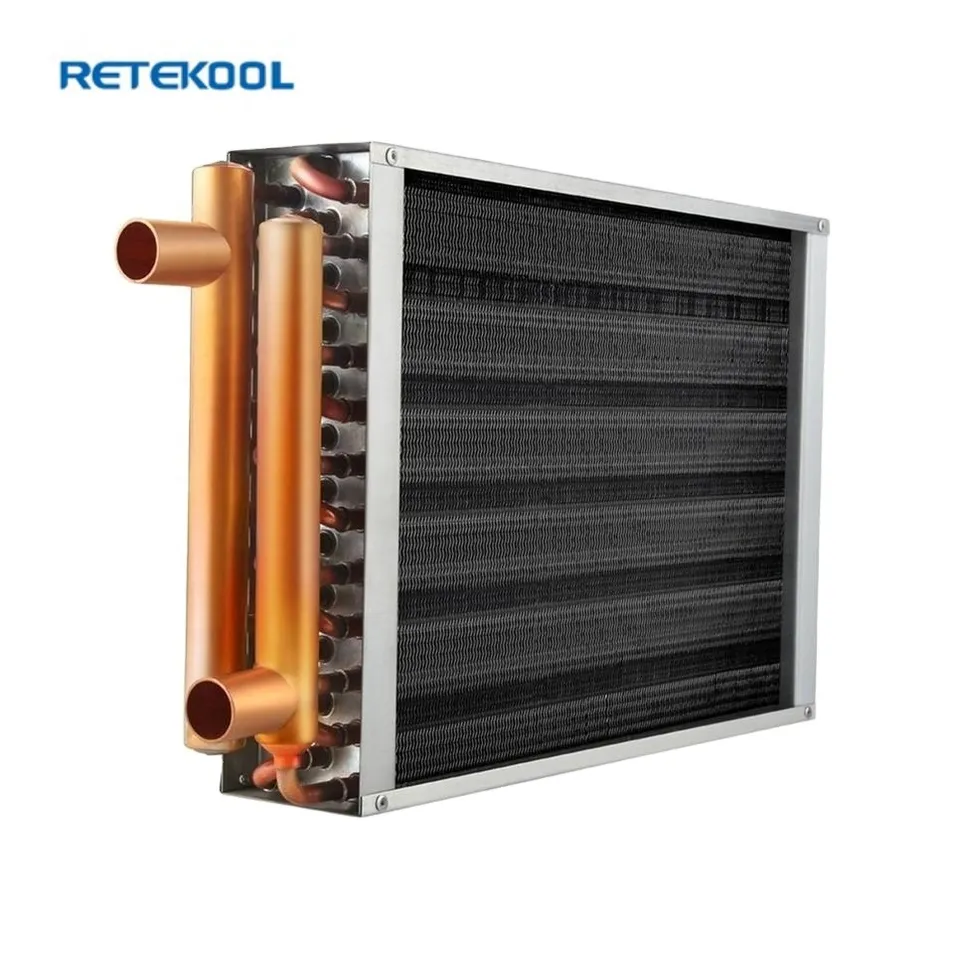

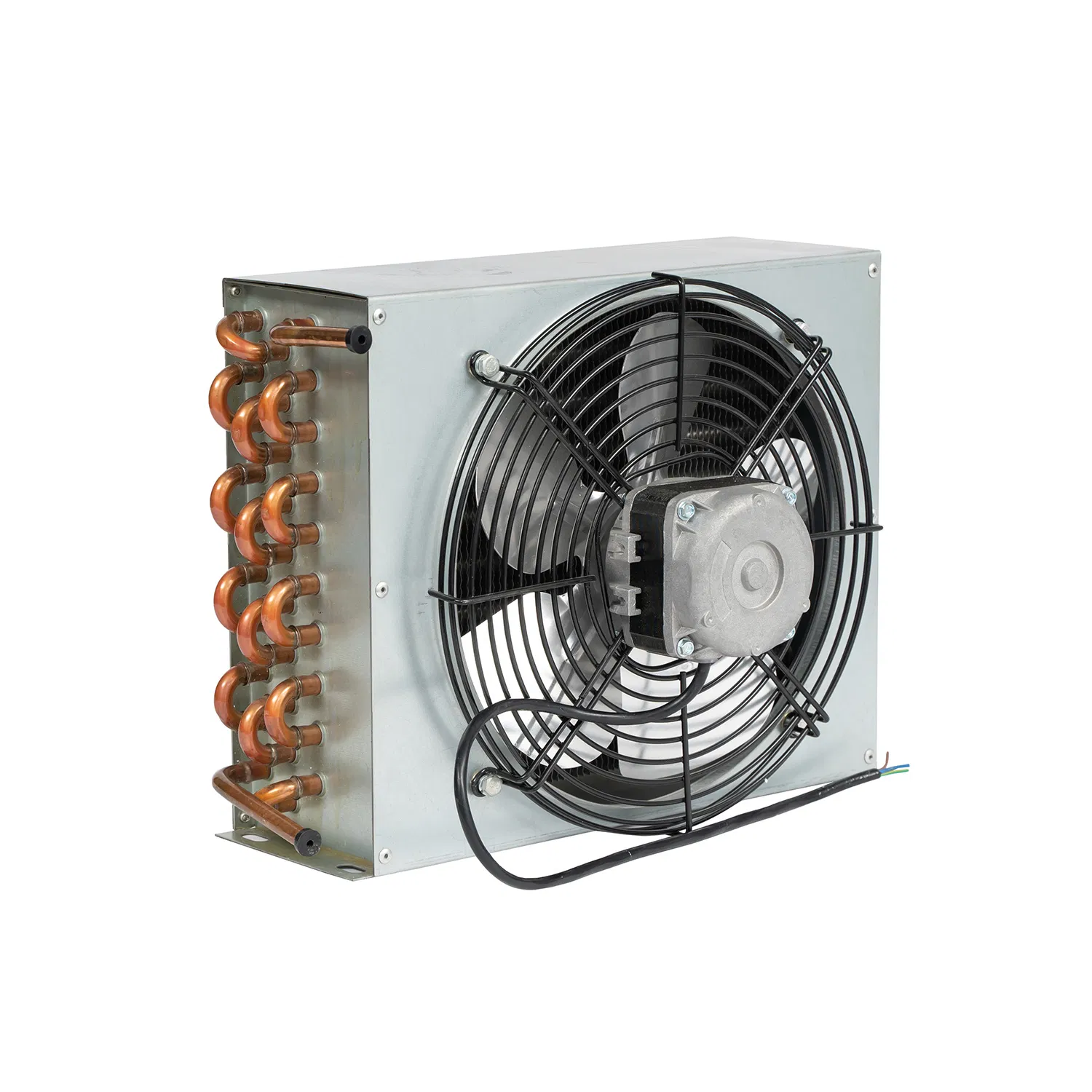

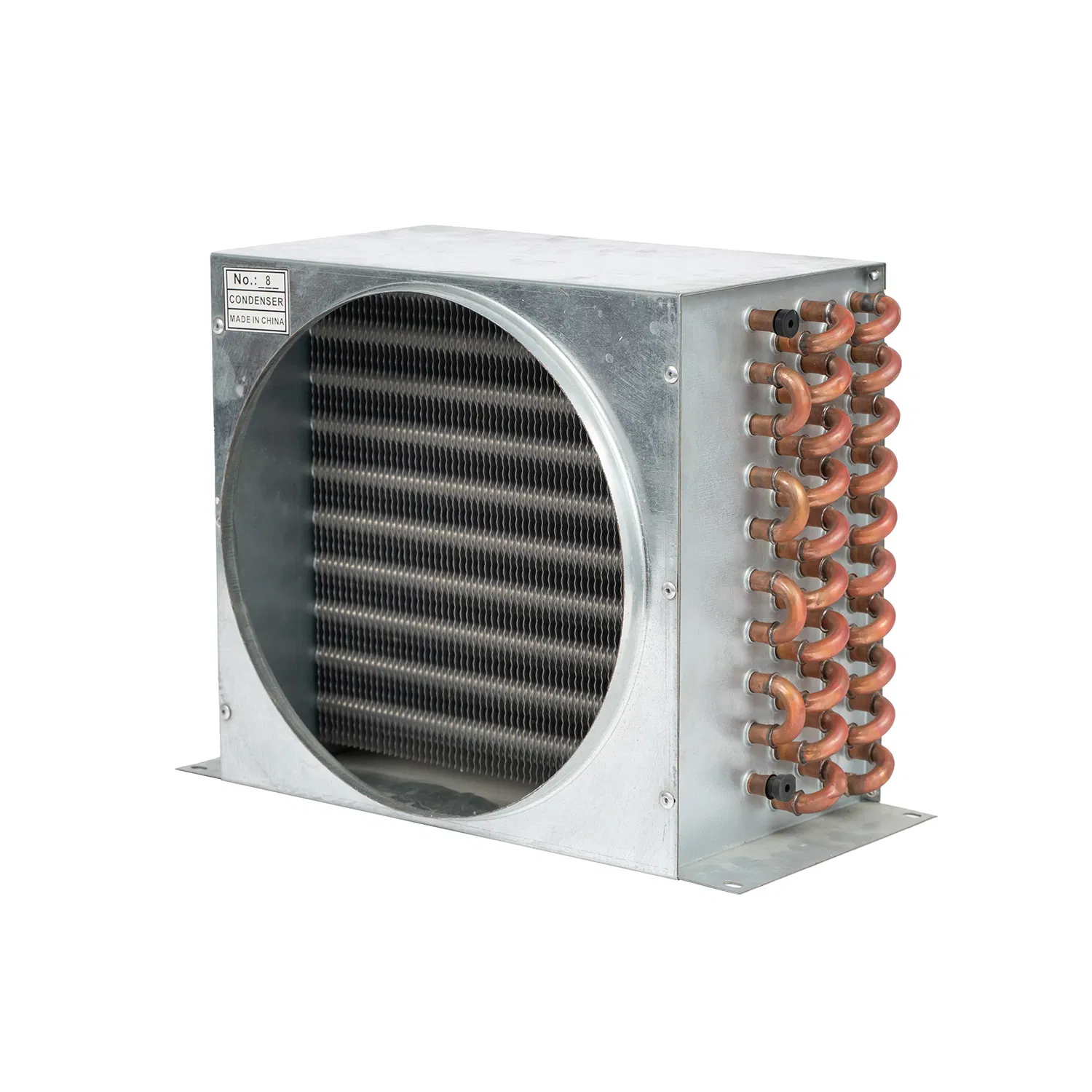

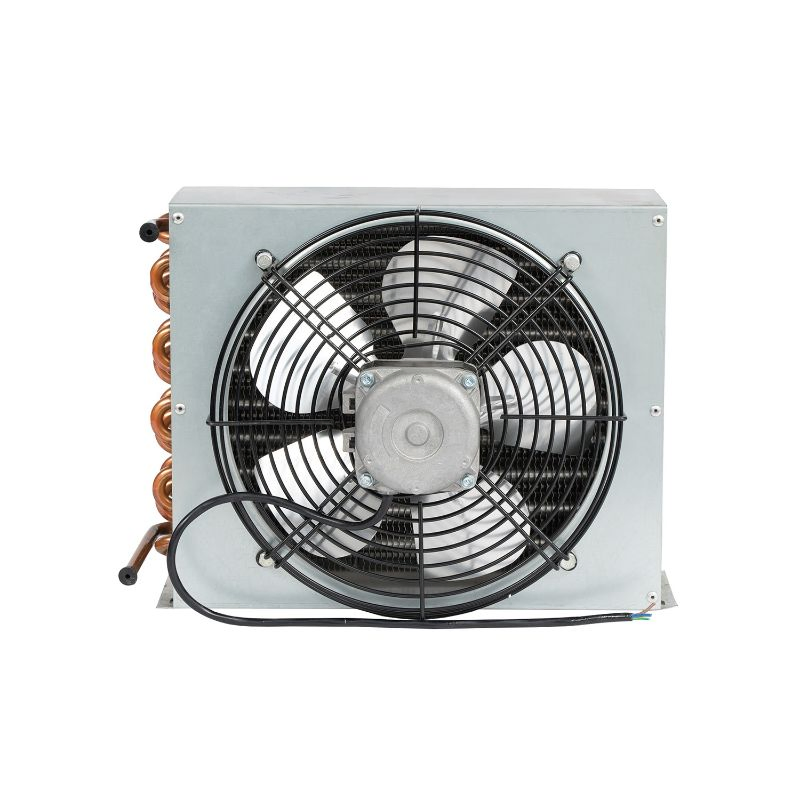

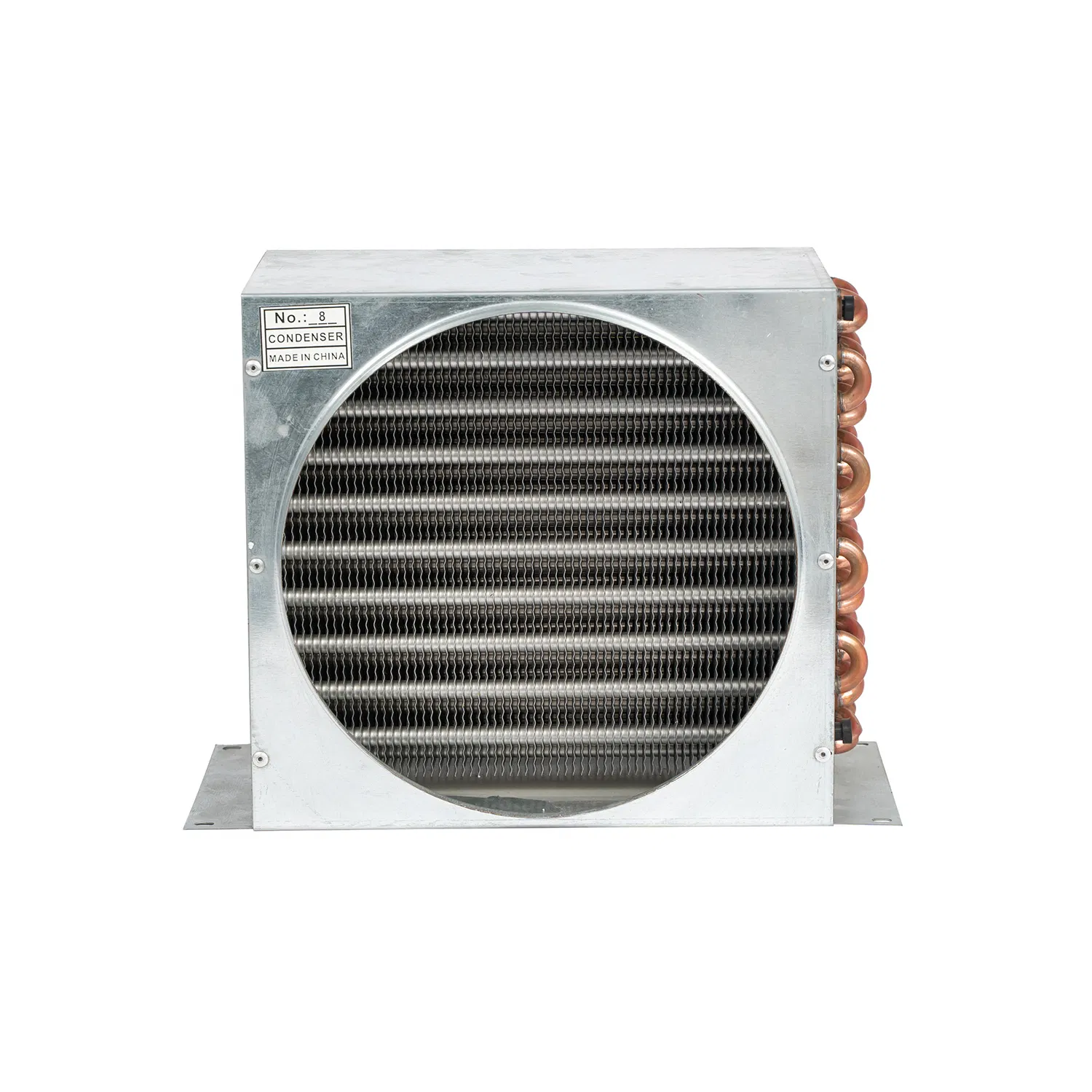

Premium Copper Evaporator

These copper tube and aluminum fin evaporators are core components designed for commercial refrigeration equipment like cold rooms and display cases. Built with high-quality copper tubes, aluminum fins (hydrophilic or bare), and a galvanized/stainless steel frame, they ensure efficient heat transfer and durability.

Key features include customizable tube diameters, selectable fin types (Louver, Flat, Corrugated) with adjustable pitch, and support for various layout patterns. Every unit is guaranteed leak-proof through a strict 3.0 MPa nitrogen test.

Copper Tube Diameter	Holes & Rows Pitch	Fin Space	Holes Array	Fin Surface	Fin Edge Type	Defrost Heater
φ15.88mm	50×50mm	4-10mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ12.7mm	31.75X27.5mm	3-9mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ9.52mm	25X21.65mm	1.5-6mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ7.94mm	25x21.65mm	1.5-3.5mm	Equilateral Triangle	Flat	Flat + Wave	Without
φ7.0mm	21×12.7mm	1.3-1.8mm	Equilateral Triangle	Louver	Flat	Without

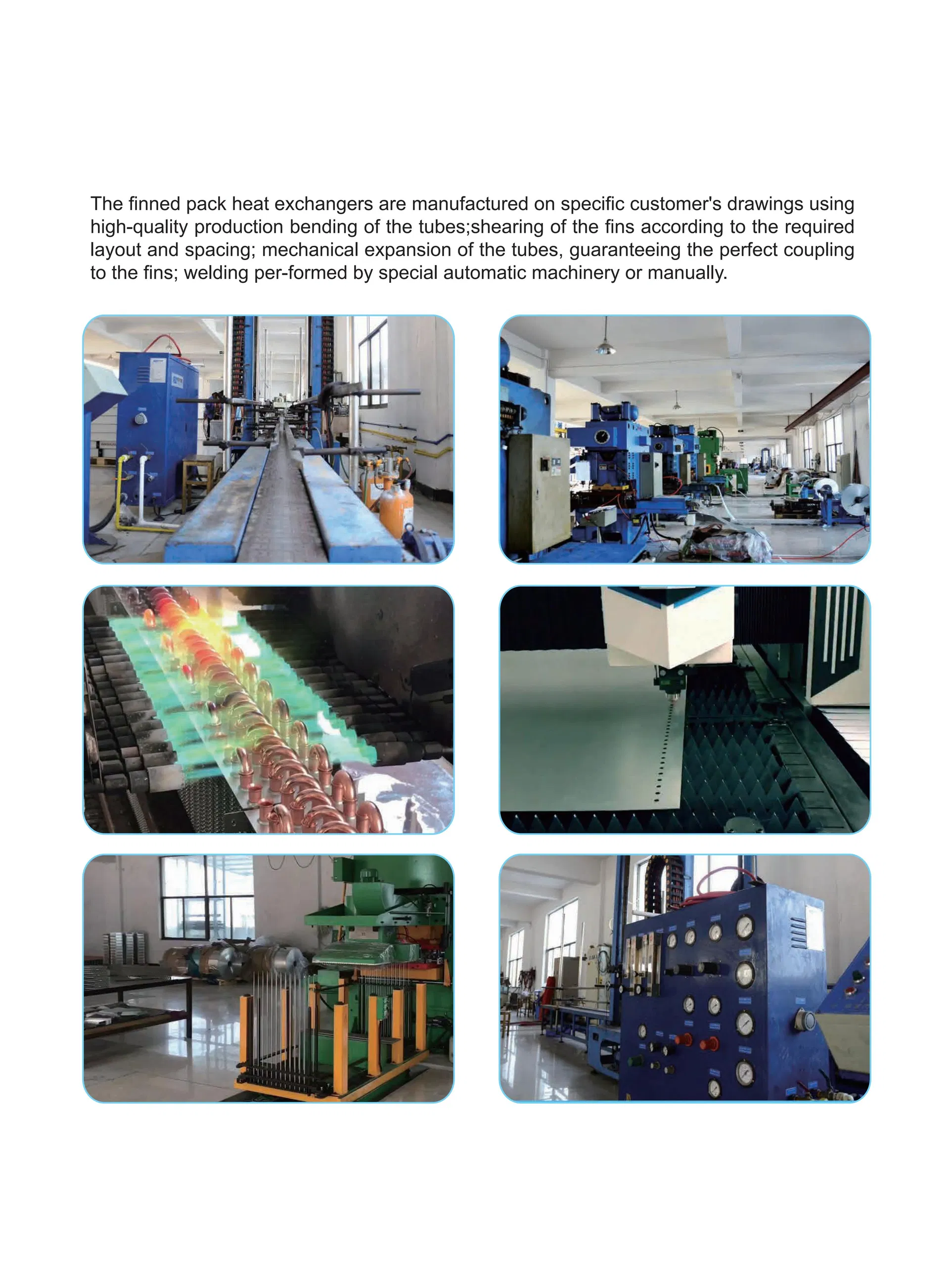

Manufacturing Excellence

Our facility is a professional manufacturer of refrigeration spare parts with over 17 years of experience. We specialize in condensers, evaporators, filter driers, and thermostats. We lead the industry by adopting new design concepts for wire tube condensers and high-resistance CO2 refrigerant components.

Professional technical engineers with over 30 years of combined experience.

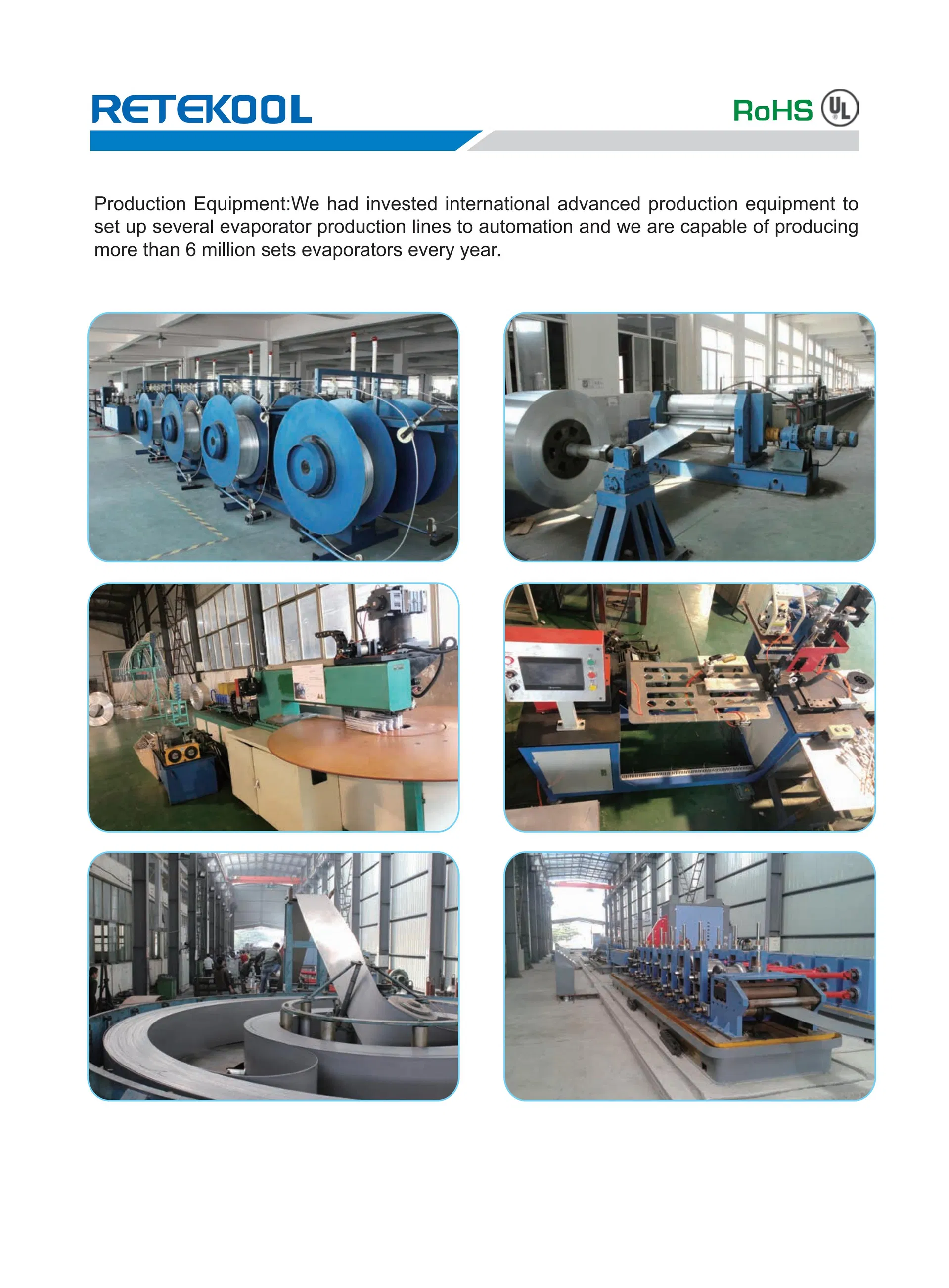

Annual capacity: 6 million wire tube condensers and 3 million roll bond evaporators.
Strict quality control with pre-production samples and final inspections.

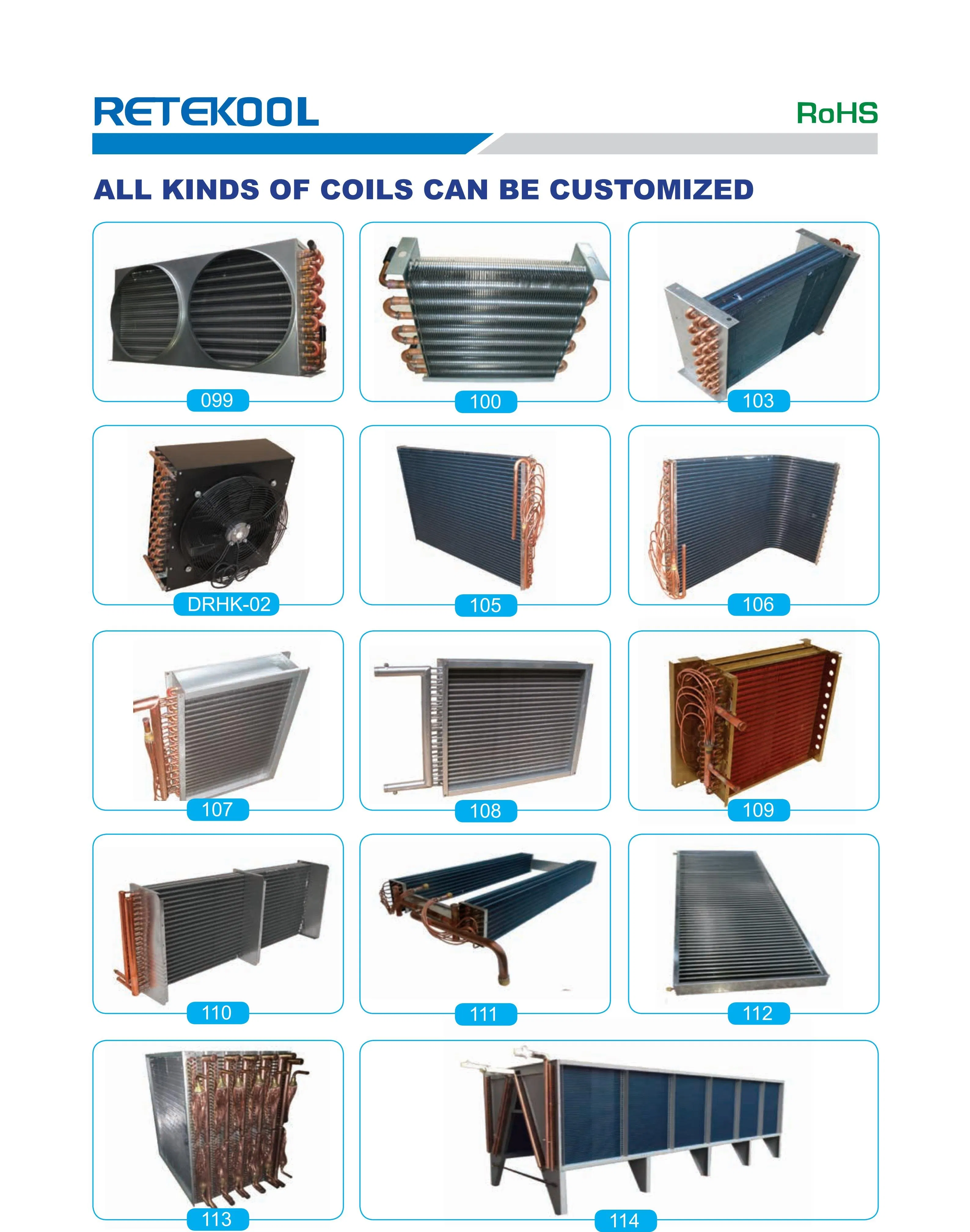

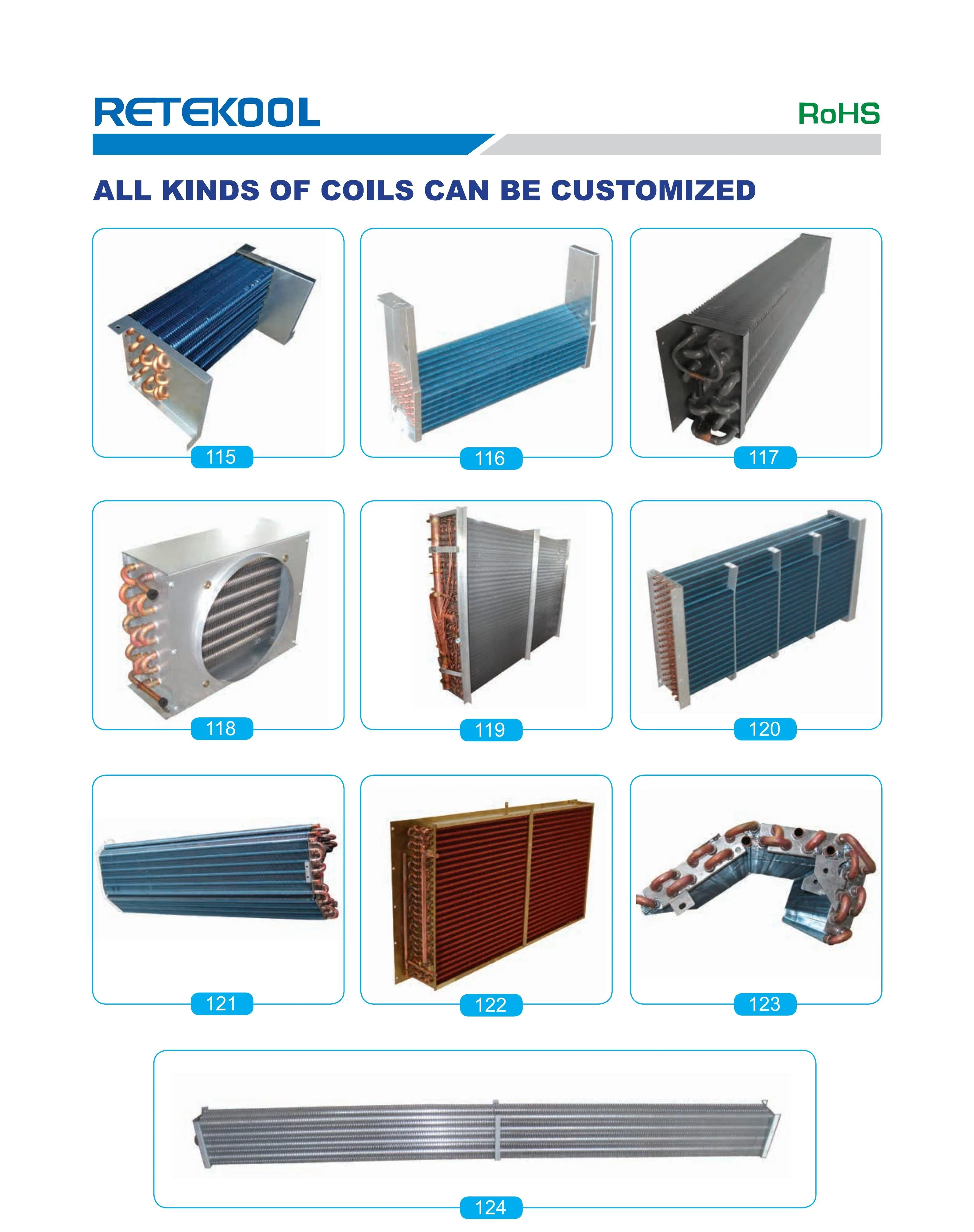

Comprehensive OEM services and technical customization support.

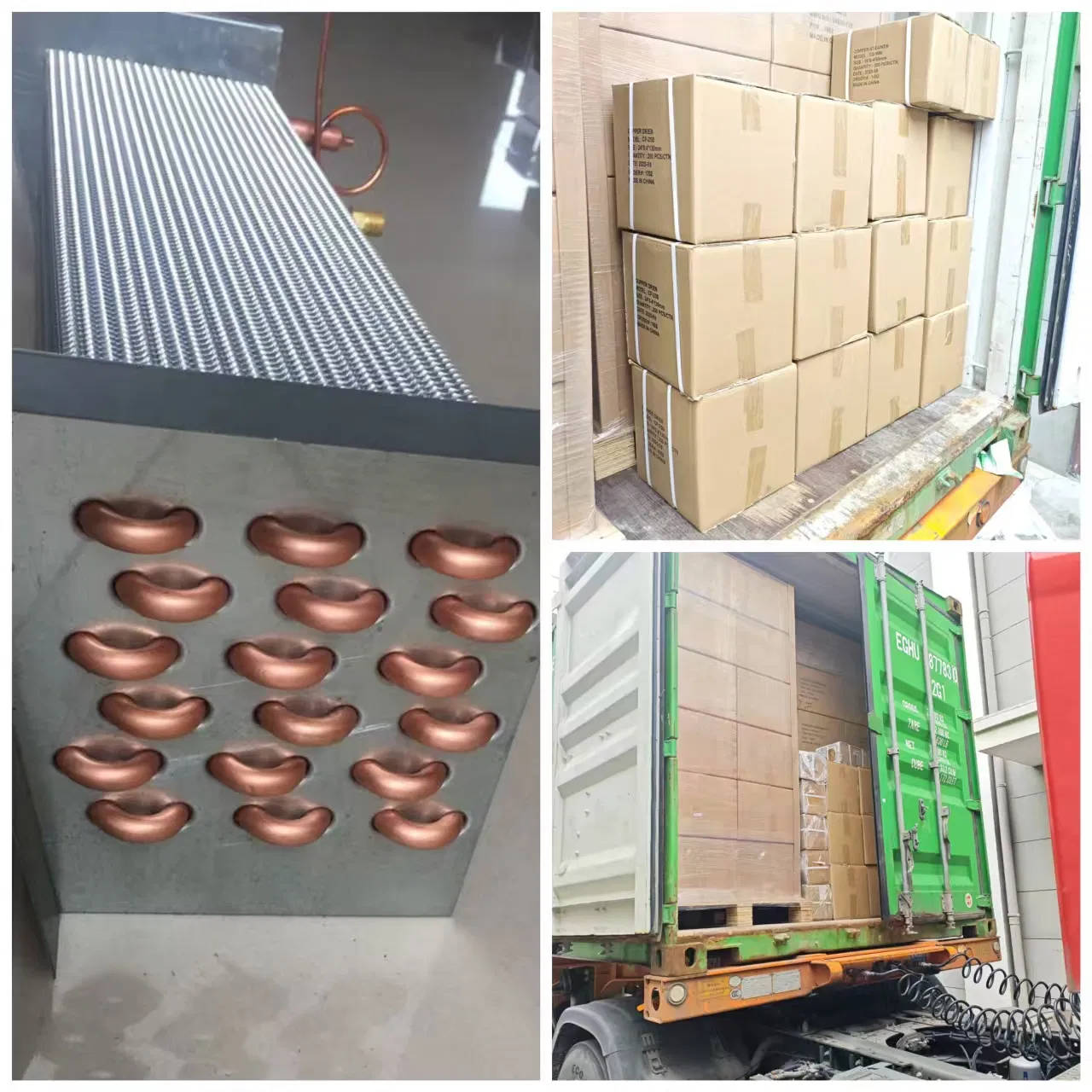

Certifications & Delivery

Global Exhibition

Frequently Asked Questions

1. How do you guarantee the quality of your evaporators?

We maintain strict quality control by providing a pre-production sample before mass production and conducting a 100% final inspection before shipment. All units undergo a 3.0 MPa nitrogen leak test.

2. What customization options are available for the copper tubes?

We offer various tube diameters including 7.0mm, 7.94mm, 9.52mm, 12.7mm, and 15.88mm. The pitch and layout can also be customized based on your specific cooling requirements.

3. Which refrigerants are compatible with your heat exchangers?

Our evaporators and condensers are compatible with all standard refrigerants, including R134a, R404A, R407C, and new low-carbon options like CO2.

4. What is the typical MOQ and delivery time?

The Minimum Order Quantity (MOQ) generally starts at 1,000 pieces depending on the item. Delivery times vary by order volume and customization needs.

5. Do you accept custom designs and is there a mold fee?

Yes, we provide full OEM and customization services. While custom products usually require a mold fee, this can be refunded once the order reaches a specific quantity.

6. What payment and delivery terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, PayPal, and Western Union in multiple currencies (USD, EUR, CNY, etc.).
